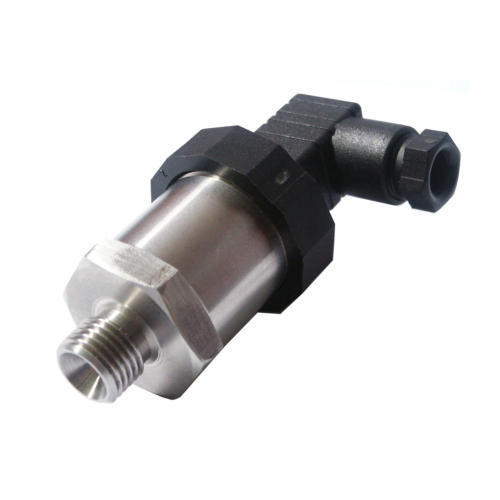

Compressor Pressure Transducer

Get a Price/Quote

MOQ : 1 Unit

Compressor Pressure Transducer Specification

Drive Type
Electronic

Control System
Signal Output / Transducer

Power Rating
Max. 5W

Cooling Method
Air Cooled

Phase
Single Phase

Weight
150 g (approx.)

Filtration Grade
Industrial

Pressure Capacity
Up to 600 psi

Frequency
50-60 Hz

Motor Power
0.5 to 2 HP

Noise Level
Low (<40 dB)

Type Of Compressor
Scroll

Allied Equipment
Compressor Pressure Transducer

Configuration
Stationary

Power Source
Electric

Silent
Yes

Lubrication Type
Oil Free

Voltage
220-240 V

Driven Mode
Direct Drive

Connector Type
3-Pin Packard/Deutsch

Measurement Medium
Air, Gas, Oil

Material of Construction
Stainless Steel Body

Output Signal
0.5 to 4.5V DC (Ratiometric)

Enclosure Rating
IP65

Accuracy
±1% FS

Application
HVAC, Industrial Automation, Compressor System Monitoring

Process Connection
1/8" or 1/4" NPT

Mounting Type
Threaded

Operating Temperature Range
-40°C to +125°C

Compressor Pressure Transducer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5000 Units Per Month

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Compressor Pressure Transducer

Backed by rich industry experience; we are highly engaged in manufacturing a premium quality range of Compressor Pressure Transducer.

Features:

Robustness
Durable
Rust resistance

Advanced Monitoring for Compressor Systems

This pressure transducer utilizes a ratiometric voltage output to provide real-time, accurate readings up to 600 psi. Its robust stainless steel construction and IP65 enclosure ensure durability even in harsh industrial environments. With compatibility for scroll-type, oil-free compressors and single-phase motors (0.52 HP), it excels in HVAC and automation applications, helping operators maintain consistent and reliable system performance.

Simple Installation and Versatile Connectivity

The threaded design supports direct NPT process connections, making setup quick and secure. With a choice of Packard or Deutsch 3-pin connectors, the transducer integrates easily into existing control systems. The devices compact size (150 g) allows for convenient mounting, while its electronic drive and low power consumption (max 5W) enhance efficiency in daily operation.

Reliable Performance in Extreme Conditions

Designed to function in operating temperatures between -40C and +125C, the transducer maintains accuracy even in challenging environments. Its noise level of less than 40 dB, combined with oil-free, air-cooled features, makes it suitable for silent and clean compressor applications. This reliability reduces maintenance needs, supporting continuous operation in industrial and commercial sectors.

FAQs of Compressor Pressure Transducer:

Q: How is the compressor pressure transducer installed in existing systems?

A: The transducer is mounted using a threaded connection compatible with 1/8" or 1/4" NPT fittings. It attaches securely to the compressor or relevant pipeline, and connection to control systems is facilitated by 3-pin Packard or Deutsch connectors.

Q: What measurement media can this transducer monitor?

A: It is designed to measure pressure in air, gas, and oil mediums, making it suitable for HVAC, industrial automation, and compressor system monitoring applications.

Q: When should I use this transducer in compressor systems?

A: Use this transducer when accurate, real-time pressure monitoring is required in scroll-type, stationary, oil-free compressors with air cooling, especially for process control and system safety management.

Q: Where can this pressure transducer be utilized?

A: It is suitable for use in industrial, commercial, and HVAC environments, particularly for compressor system monitoring, within its specified pressure (up to 600 psi) and temperature range (-40C to +125C).

Q: What are the benefits of using a stainless steel body with IP65 enclosure rating?

A: The stainless steel body offers superior corrosion resistance and durability, while the IP65 enclosure protects the device from dust and water ingress, ensuring reliable performance in demanding industrial conditions.

Q: How does the 0.5 to 4.5V DC output signal benefit system integration?

A: This ratiometric output allows direct interfacing with electronic control systems for precise pressure monitoring and control. This facilitates automation and enhances compressor safety and efficiency.

Q: What process steps are involved in configuring the transducer for operation?

A: First, select the required NPT connection size (1/8" or 1/4"), mount the transducer securely, connect it to the control system using the appropriate 3-pin connector, and power it using an electric source (220-240V single phase). Calibration may be done if higher accuracy is needed for specific applications.
